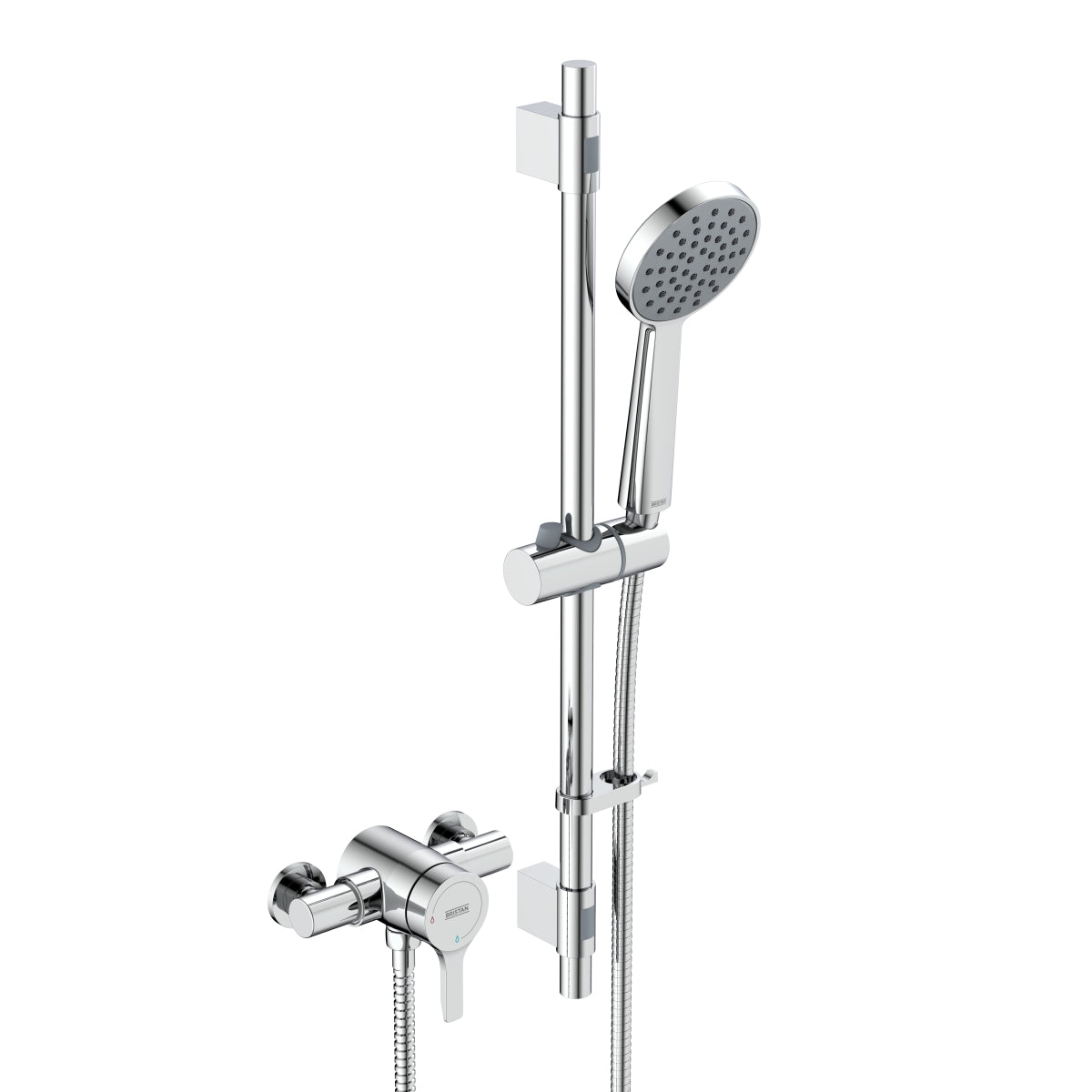

Bristan Onza Thermostatic Exposed Shower Valve With Shower Riser Kit - Chrome

The Bristan Onza shower set in chrome finish is a modern and durable bathroom solution designed to deliver consistent performance and long lasting reliability. Constructed from brass ABS and stainless steel materials it ensures strength stability and resistance to everyday wear. The polished chrome finish enhances its visual appeal with a clean reflective surface that complements a wide range of bathroom interiors. Designed to operate efficiently across a pressure range from 0.2 bar to 5.0 bar it is suitable for most domestic plumbing systems and supports a maximum static pressure of 10 bar along with a maximum hot water temperature of 60C. The inlet connection uses 15mm compression and the outlet connection is G 1/2 for standard compatibility. The handset flow rates are carefully regulated to provide a balanced showering experience with outputs of 1.7 litres per minute at 0.2 bar 5.4 litres per minute at 0.5 bar 7.6 litres per minute at 1 bar 8.3 litres per minute at 2 bar and 8.8 litres per minute at both 3 bar and 5 bar ensuring smooth and controlled water delivery.

This shower set is WRAS approved and engineered for safety efficiency and ease of use making it suitable for modern households. It features a sequential cartridge system combined with an adjustable riser to provide smooth operation and flexible positioning. The thermostatic control system includes a 42C safety stop and automatic shut off protection which maintains a safe and stable water temperature during use. In case of hot or cold water supply failure the system automatically shuts off to ensure user protection. The product is supplied with all essential components including a shower valve hose retainer riser rail and a rub clean anti limescale single function handset designed for easy maintenance and long term performance. Installation is simplified with adjustable brackets that allow reuse of existing screw holes along with an Easyfit installation design that reduces fitting time. Overall this chrome shower set combines safety reliability and modern aesthetics for a practical bathroom upgrade.

PRODUCT SPECIFICATIONS

• Product SKU: NZA SHXAR C
• Shower Set
• Brand: Bristan
• Collection: Onza
• Finish: Chrome
• Style: Modern
• Material: Brass/ABS/Stainless Steel
• Guarantee: Lifetime
• Inlet Connection: 15mm Compression
• Outlet Connection: G 1/2”
• Minimum Pressure: 0.2 Bar
• Maximum Pressure: 5.0 Bar
• Max. Hot Water Temperature °C: 60°C
• Max. Static Pressure: 10 Bar
• Flow Rate - 0.2 (Handset) Bar: 1.7 L/min
• Flow Rate - 0.5 (Handset) Bar: 5.4 L/min
• Flow Rate - 1 (Handset) Bar: 7.6 L/min
• Flow Rate - 2 (Handset) Bar: 8.3 L/min
• Flow Rate - 3 (Handset) Bar: 8.8 L/min
• Flow Rate - 5 (Handset) Bar: 8.8 L/min
• Isolation Valve Included: No

PRODUCT FEATURES

• WRAS approved product
• Sequential Cartridge, Adjustable Riser
• Thermostatic control with a 42°C safety stop and automatic shut-off protection ensures secure, reliable performance.
• Supplied with everything you need, including shower valve, hose, hose retainer, riser rail and a rub-clean anti-limescale single function handset
• Shower safely with automatic shut-off protection if hot or cold water supply fails
• Effortless fitting with adjustable brackets that reuse existing screw holes
• Easyfit Installation

Download the Technical PDF Here.
