Bristan Hourglass Dual Control Thermostatic Concealed Shower Kit - Brushed Brass

The Bristan Hourglass shower set is a modern bathroom solution designed with a brushed brass finish that adds warmth and elegance to contemporary interiors. It is constructed using a combination of brass and ABS materials to ensure strength durability and long lasting performance. The system operates efficiently with a minimum pressure of 0.2 bar and a maximum pressure of 5 bar while also withstanding a maximum static pressure of 10 bar. It is suitable for hot water use up to 65 degrees Celsius and connects via a 15 millimetre compression inlet with a G one half inch outlet connection. The shower set delivers consistent water performance with the handset providing flow rates from 3.1 litres per minute at 0.2 bar up to 10.6 litres per minute at 5 bar while the fixed head offers flow rates from 3.3 litres per minute at 0.2 bar up to 10.9 litres per minute at 5 bar ensuring balanced and efficient water distribution.

This shower set features a 40 millimetre single lever cartridge that ensures smooth and reliable operation while allowing separate control of flow and temperature for enhanced comfort and precision. It includes a 200 millimetre round slimline fixed shower head with a matching shower arm along with a multi function handset hose integral handset holder and wall outlet providing a complete showering solution. The system is suitable for all plumbing systems when properly balanced and is designed with an adjustable faceplate that accommodates wall depths from 60 millimetres to 75 millimetres ensuring a neat and flush finish. The cartridge can be accessed from the front for maintenance while rear access is required for servicing filters. It is designed with easyfit installation to simplify fitting for professionals and homeowners. The product does not include an isolation valve and features two handles for independent control. Supported by a lifetime guarantee this shower set combines durability functionality and modern design for reliable everyday use.

PRODUCT SPECIFICATIONS

• Product SKU: HOURGLASS BB SHWR PK
• Shower Set
• Brand: Bristan
• Collection: Hourglass
• Finish: Brushed Brass
• Style: Modern
• Material: Brass/ABS
• Guarantee: Lifetime
• Inlet Connection: 15mm Compression
• Outlet Connection: G 1/2”
• Minimum Pressure: 0.2 Bar
• Maximum Pressure: 5.0 Bar
• Max. Hot Water Temperature °C: 65°C
• Max. Static Pressure: 10 Bar
• Flow Rate - 0.2 (Handset) Bar: 3.1 L/min
• Flow Rate - 0.5 (Handset) Bar: 4.9 L/min
• Flow Rate - 1 (Handset) Bar: 6.9 L/min
• Flow Rate - 2 (Handset) Bar: 8.3 L/min
• Flow Rate - 3 (Handset) Bar: 9.5 L/min
• Flow Rate - 5 (Handset) Bar: 10.6 L/min
• Flow Rate - 0.2 (Head) Bar: 3.3 L/min
• Flow Rate - 0.5 (Head) Bar: 5.2 L/min
• Flow Rate - 1 (Head) Bar: 7.3 L/min
• Flow Rate - 2 (Head) Bar: 8.8 L/min
• Flow Rate - 3 (Head) Bar: 9.8 L/min
• Flow Rate - 5 (Head) Bar: 10.9 L/min
• Isolation Valve Included: No
• No Of Handle: 2

PRODUCT FEATURES

• 40mm Single Lever Cartridge
• Suitable for all plumbing systems, ideally balanced

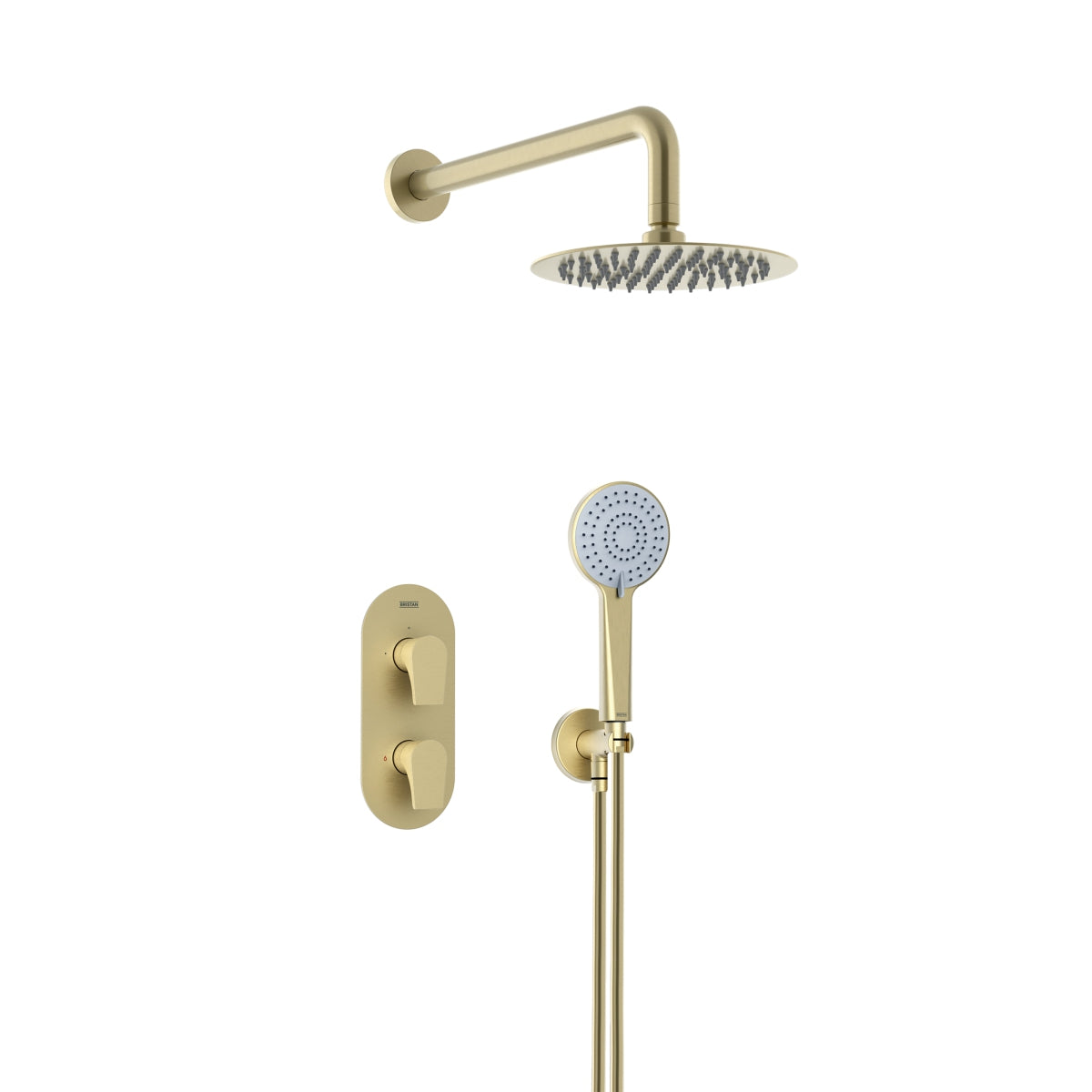

• It has a 200mm round slimline fixed head with shower arm; a multi function handset and hose with integral handset holder and wall outlet

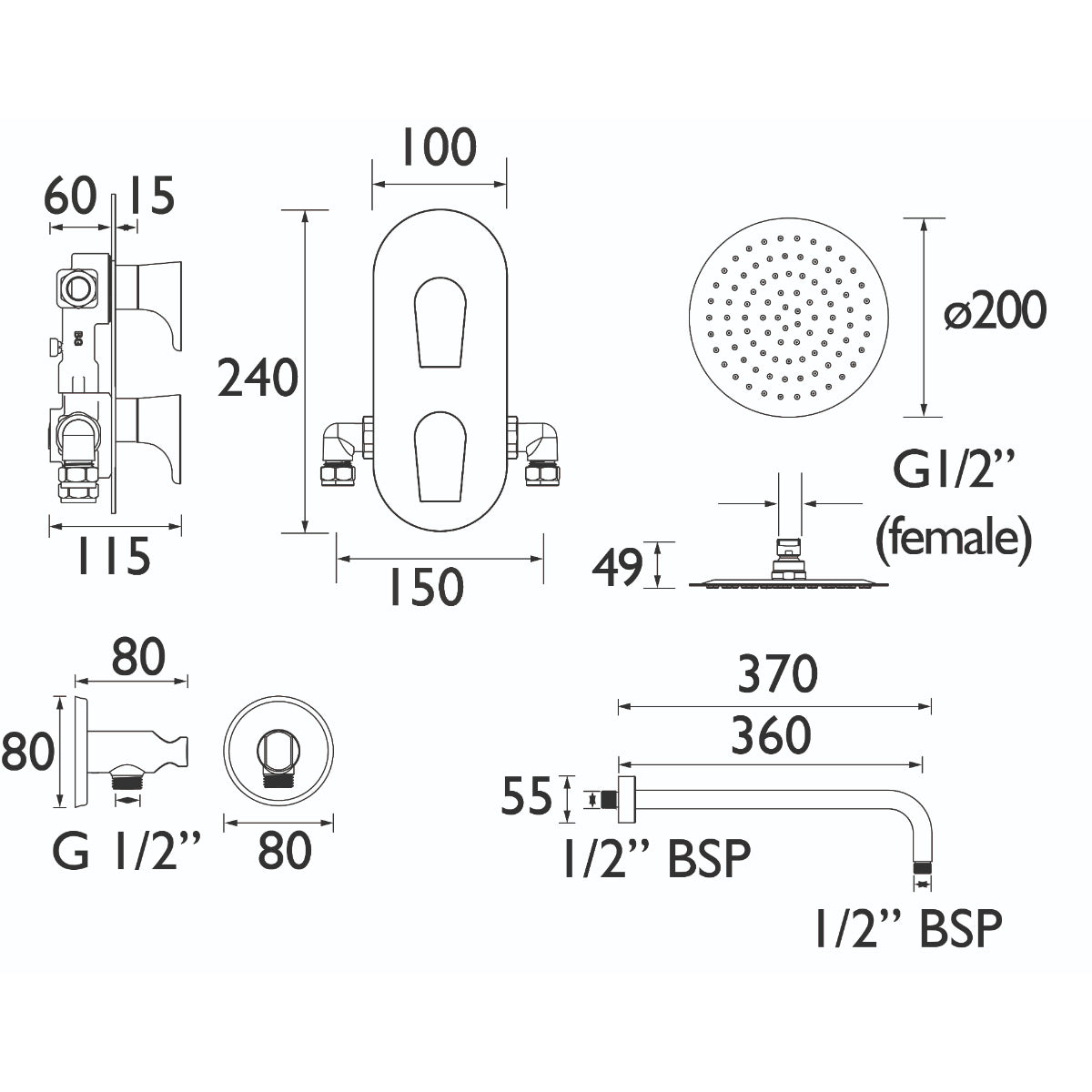

• Easy installation with an adjustable faceplate that fits total wall depths from 60mm to 75mm for a perfect flush finish
• Dual control - flow and temperature are controlled separately
• Cartridge can be accessed from the front, Requires rear access to service filters
• Easyfit Installation

Download the Technical PDF Here.
