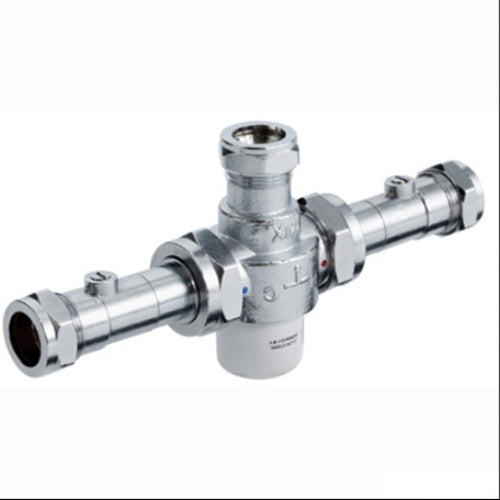

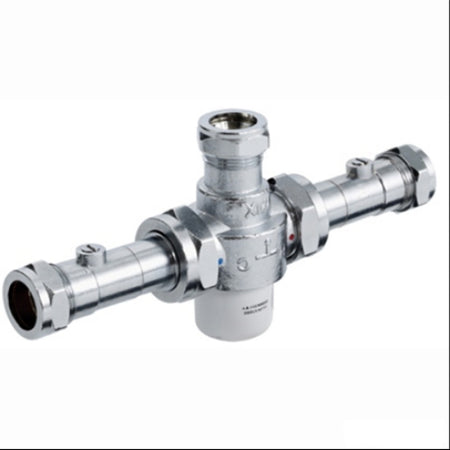

Bristan Gum Thermostatic Mixing Valve with Isolation Elbows - 22mm Compression
Couldn't load pickup availability
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
The thermostatic mixing valve is engineered to deliver precise and consistent water temperature control across a wide range of plumbing systems. Constructed from durable brass and designed in a clean round profile, it offers both strength and reliability for long term use in residential and commercial installations. Its robust build ensures stable performance under varying water pressure conditions, maintaining a smooth and balanced flow even in demanding environments. With compatibility across low to high pressure systems, it provides dependable operation and consistent mixing efficiency, making it suitable for a variety of installation scenarios where safety and performance are essential.
This valve incorporates advanced safety and maintenance features that enhance both usability and long term reliability. It includes automatic shutoff functionality that activates in the event of hot or cold water supply failure, helping to prevent sudden temperature fluctuations and ensuring user protection. Integrated check valves and serviceable filters are included as standard to maintain clean water flow and reduce ongoing maintenance requirements. The isolation point at the mixing stage allows for convenient servicing without disrupting the entire system, improving efficiency during maintenance work. Designed to operate safely under a high pressure differential, it maintains stable output even when system conditions change. The Easyfit installation system simplifies the fitting process and reduces installation time, making it suitable for both new installations and replacement projects. With WRAS approval and compliance with relevant safety standards including Part G, this thermostatic mixing valve ensures reliable temperature regulation, enhanced safety control and consistent performance for modern plumbing applications.
PRODUCT SPECIFICATIONS
- Product SKU: MT753CP-ISO
- Thermostatic Mixing Valve
- Brand: Bristan
- Collection: Gum
- Shape: Round
- Material: Brass
- Guarantee: 1 Year
- Inlet Connection: 15mm Compression
- Outlet Connection: 15mm Compression
- Minimum Pressure: 0.2 Bar
- Maximum Pressure: 5.0 Bar
- Max. Hot Water Temperature °C: 80°C
- Max. Static Pressure: 10 Bar
- Flow Rate - 0.2 Bar: 17 L/min
- Flow Rate - 0.5 Bar: 28 L/min
- Flow Rate - 1 Bar: 42 L/min
- Flow Rate - 2 Bar: 59 L/min
- Flow Rate - 3 Bar: 73 L/min
- Flow Rate - 5 Bar: 95 L/min
- Flow Type: Single
- Isolation Valve Included: Yes
PRODUCT FEATURES
- WRAS approved product
- Easyfit Installation
- Isolation at mixing point facilitates easy servicing
- Automatic shutoff in the event of hot or cold water supply failure
- Check valves and serviceable filters as standard
- Operates at a maximum pressure differential of 10:1
- Part G compliant
