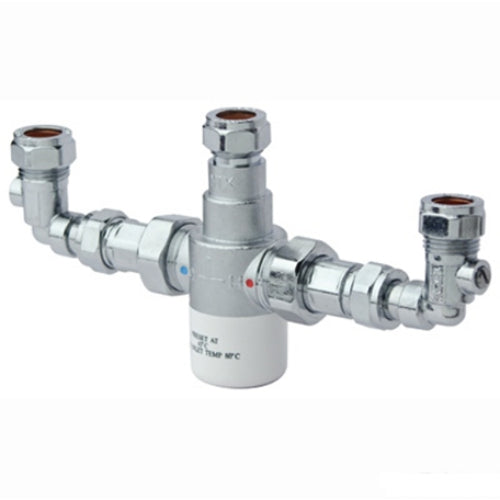

Bristan Gum Thermostatic Mixing Valve with Isolation Elbows - 15mm Compression - Chrome
Couldn't load pickup availability
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
The thermostatic mixing valve is designed to deliver accurate and stable water temperature control across a wide range of plumbing installations. Manufactured from durable brass and finished in a classic chrome appearance, it combines strength with a clean and modern look suitable for both residential and commercial environments. Its round body design allows for straightforward installation and compatibility with standard plumbing layouts. Built to perform across varying pressure conditions, it ensures consistent water flow and dependable mixing performance even in low pressure systems, making it a versatile solution for different installation requirements.
This valve is engineered with a strong focus on safety, reliability and ease of maintenance. It features automatic shutoff functionality that activates in the event of hot or cold water supply failure, helping to protect users from sudden temperature changes. Integrated check valves and serviceable filters come as standard, supporting long term performance by maintaining clean water flow and reducing maintenance frequency. The isolation at the mixing point allows for convenient servicing without the need to shut down the entire system. Designed to operate efficiently under a high pressure differential, it ensures stable and controlled output across varying conditions. The Easyfit installation system simplifies fitting and reduces installation time, making it suitable for both new builds and replacement projects. With compliance to relevant safety standards, including Part G requirements, this thermostatic mixing valve provides dependable temperature regulation, improved safety control and consistent performance for modern plumbing systems.
PRODUCT SPECIFICATIONS
- Product SKU: MT503CP-ISOELB
- Thermostatic Mixing Valve
- Brand: Bristan
- Collection: Gum
- Finish: Chrome
- Shape: Round
- Material: Brass
- Guarantee: 1 Year
- Inlet Connection: 15mm Compression
- Outlet Connection: 15mm Compression
- Minimum Pressure: 0.1 Bar
- Maximum Pressure: 5.0 Bar
- Max. Hot Water Temperature °C: 80°C
- Max. Static Pressure: 10 Bar
- Flow Rate - 0.1 Bar: 8.5 L/min
- Flow Rate - 0.2 Bar: 15 L/min
- Flow Rate - 1 Bar: 21.5 L/min
- Flow Rate - 2 Bar: 31 L/min
- Flow Type: Single
- Isolation Valve Included: Yes
PRODUCT FEATURES
- WRAS approved product
- Easyfit Installation
- Isolation at mixing point facilitates easy servicing
- Automatic shutoff in the event of hot or cold water supply failure
- Check valves and serviceable filters as standard
- Operates at a maximum pressure differential of 10:1
- Part G compliant
